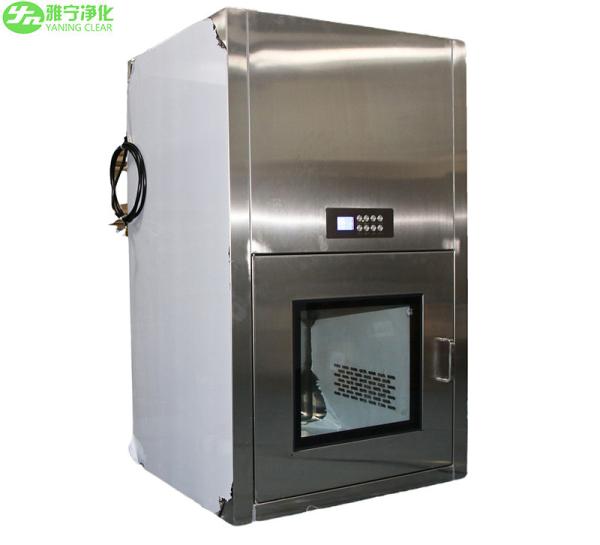

Laminar Air Flow Pass Box Airtight Interlock Dynamic Hatch 160W

Name: Laminar Air Flow Pass Box Airtight Interlock Dynamic Hatch 160W
Brand: YANING CLEAR
Price: 1 USD

Quality Laminar Air Flow Pass Box Airtight Interlock Dynamic Hatch 160W for sale

Brand Name : YANING CLEAR

Model Number : YN-PBD-600

Certification : CE ISO SGS

Place of Origin : Guangdong, China

MOQ : 1 SET

Price : Reconsideration

Payment Terms : Western Union,T/T,L/C

Supply Ability : 100 units/Week

Delivery Time : 7 work days

Packaging Details : The machine itself is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.

Material : Powder Coated Steel / SUS304

Material thickness : 1.2mm

Core Components : Interlock door, HEPA filter

Internal Work Zone (W*D*H) : 600*600*600mm

External Dimension (W*D*H) : 780*680*1200mm

Voltage : 220V/50Hz

Advantage : Air tight, Easy clean design

HEPA Filter : U15 (383x401x93mm)

HEPA Filter Efficiency : 99.9995%@0.3um

Blower Power : 160W

Contact Now

Static Pass Box Embedded

Laminar Air Flow Pass Box Airtight Interlock Dynamic Hatch 160W

Configuration Option

①Material: Powder coated steel,Polish SUS 201/304/316; Mirror SUS 201/304/316 ②Door Type: Standard external door,Concealed door; ③ Lock Type: Mechanical interlock,electromagnetic interlock ④ Others Option: Sound and light alarm,Serilizer,Interphone,Conveyor

Product Description

The dynamic pass box is an auxiliary equipment of the clean room, which is mainly used for the transfer of small items between two clean areas or between the clean area and the non-clean area, so as to reduce the number of door openings in the clean room,minimize contamination of clean areas. The dynamic pass box is equipped with ultraviolet germicidal lamps.The transferred items are sterilized by ultraviolet radiation before entering the clean area.On the one hand, it acts as an airlock to prevent high-level clean room high pressure from leaking, and on the other hand, it achieves a self-cleaning effect during the transfer process.The front and rear doors of dynamic pass box are also equipped with electronic interlocking or mechanical interlocking. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places.

Products Description

Product Parameter
Item	Dynamic Pass Box
Model	YN-ZJC-01	YN-ZJC-02	YN-ZJC-03
External size W×D×H(mm)	680×580×1100	780×680×1200	980×880×1400
Internal Size W×D×H(mm)	500×500×500	600×600×600	800×800×800
Noise	＜65 dB(A)	＜65 dB(A)	＜65 dB(A)
U15 ULPA Filter (mm)	283×301×93×1 Pcs	383×401×93×1 Pcs	583×601×93×1 Pcs
Filter Efficiency	99.9995%@0.3μm	99.9995%@0.3μm	99.9995%@0.3μm
Fan Power (W)	195W×1 Pcs	170W×1 Pcs	170W×1 Pcs
Sterilization Power(W)	6W×1 Pcs	8W×1 Pcs	15W×1 Pcs
LED Lamp Power(W)	6W×1 Pcs	6W×1 Pcs	12W×1 Pcs
Lock Type	Mechanical interlock,Eletromagnetic interlock
Air Velocity(m/s)	0.45m/s±20%
Clean Level	ISO 5
Supply Power	AC 1N 220V/50Hz

Success case show

Our Factory

Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong

Packing&Delivery

Packaging

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

shipping

Samples be shipped by DHL/FedExUSP and so on Mass production be shippinh by Air or Sea

Exhibition

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
